SPECIFICATIONS

Brand Name: DIXSG

Brand name: VTR

Dimension: 96mm*65.6mm*29.6mm

High-concerned chemical: None

Interface Type: Other

Life span: ≥50Km

Max. Resolution: 384 Dots/line

Model: VTR-2RH(with cutter)

Origin: Mainland China

Place of origin: Fujian, China(Mainland)

Printing speed: 90mm/s

Printing width: 48mm

Product name: 58mm thermal printer mechanism

Product type: Thermal dot line printing

Product weight: 50g

after-sales service: Return and Replacement

black print speed: 90mm/s

brand name: VTR

max paper size: 58mm

place of origin: Fujian, China

warranty(year): 1-Year

Product Description

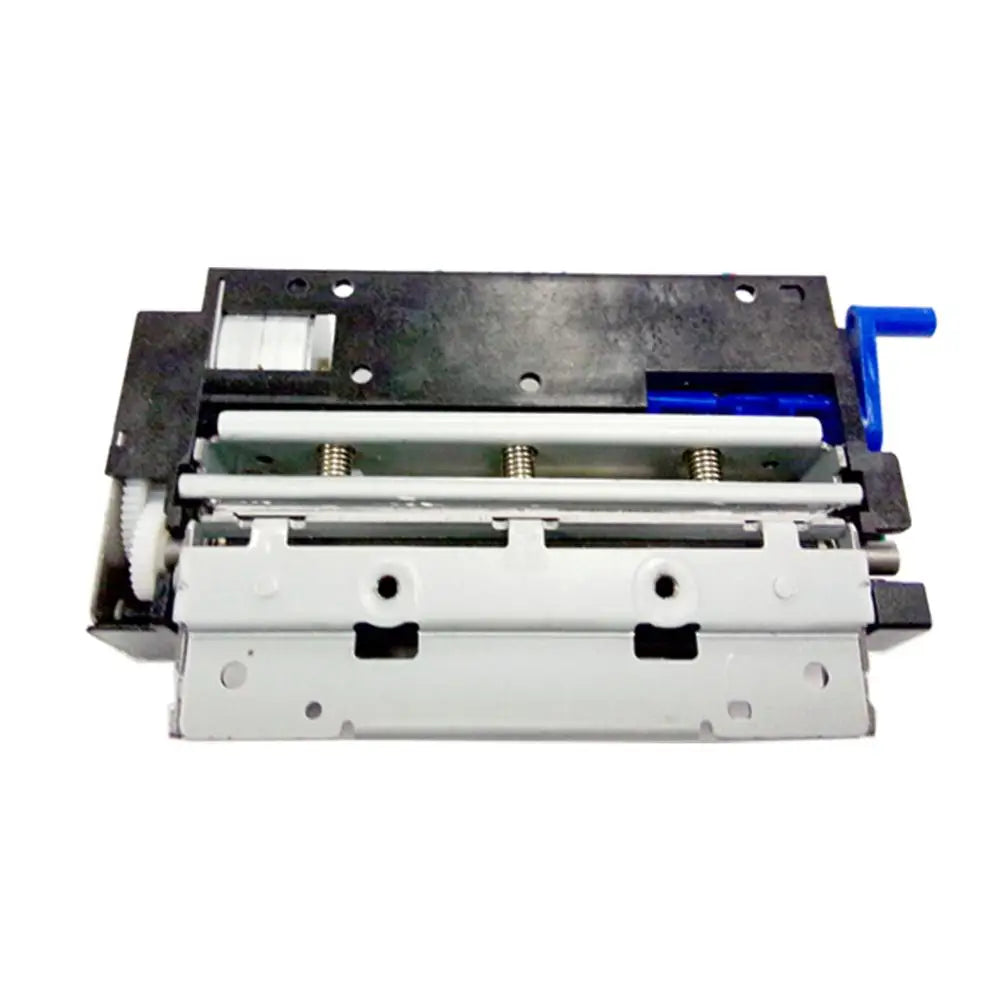

Product Name	2 inch printer mechanism VTR-2RH
→ Long life span		Sponge
→ Easy paper loading structure
→ 180 degree vertical feed
→  Low noise, strong and durable
→  High printing speed 80mm/s (8.5V)
Printing life span	≥50Km
Dots per line	384dots
Dimension	96mm x 65.6mm x 29.6mm
Average resistance of printer head	176Ω + 4%
Paper out detection	Via photo interrupter
Printer head working power voltage	VH:3.15~8.50VDC
Motor driving voltage(DCV)	4.20~8.50VDC
Paper feed in & out	Curve paper feed out
Working temperature	0鈩儈50鈩�
Print method	Thermal dot line printing
Paper width	58mm
Print width(mm)	48mm
Product weight	266g
Platen roller fixed type	Detachable main body of printer mechanism easy to load paper
Head temperature detection	Via thermistor
Head logic voltage(VDC)	VDD:2.7~5.25VDC
Mechanical working voltage	60dB(Max)
Cutting method	Manual tear paper
Working humidity	20%~85RH
Point density	8dots/mm
Dot pitch	0.125mm
Dot size	0.125 x 0.12mm
Printing speed(Max)	85mm/s (Motor driving voltage 8.50VDC)
Product driven	Stepping motor(4.20~10VDC pulse driven) the paper travel distance per step is 0.0625
Scope	Portable/Cash register/queuing machine/Pos machine etc thermal bill printing equipment
