SPECIFICATIONS

Accuracy: ± 1%

Accuracy Class: 0.1

Battery Included: No

Brand Name: Aideepen

Capacity range: 0-19999mAH

Certification: CE

Current resolution: 0.01A

DIY Supplies: Electrical

Dimensions: 5.80cm*2.70cm*1.90cm

Display Type: Digital Only

Feature 1: Safe charging

Feature 2: real-time monitoring

Feature 3: Higher precision

Feature 4: current parameters will not jump around randomly

Feature 5: current sampling 25 milliohms

Feature 6: less loss

Feature 7: Multiple sets of detection data are saved

Feature 8: Power-off save function

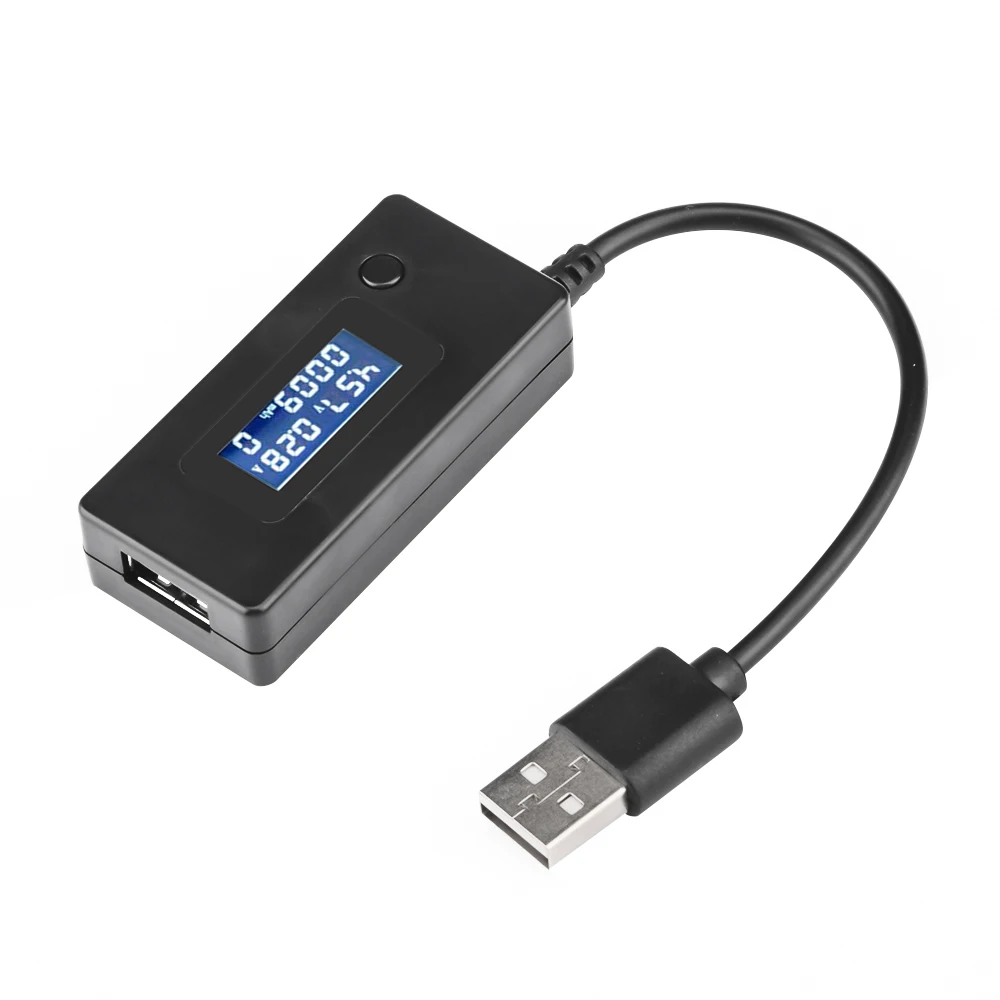

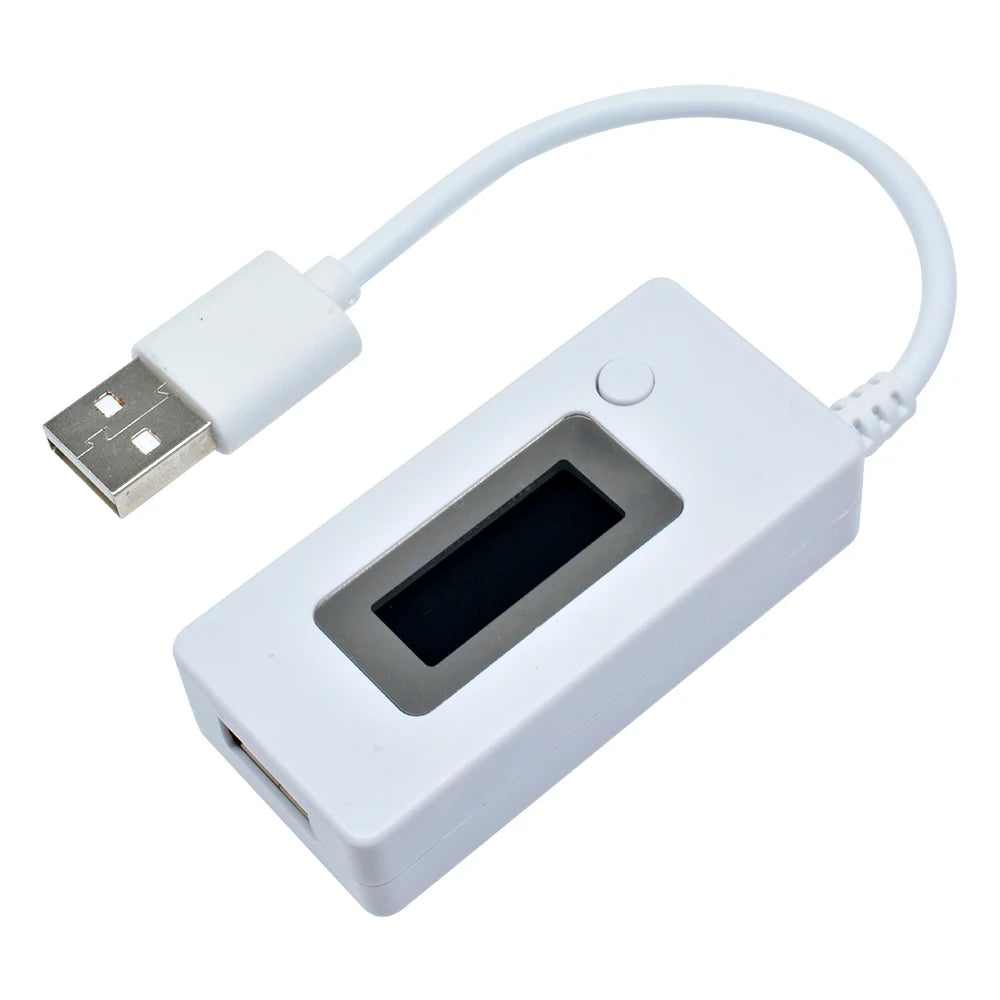

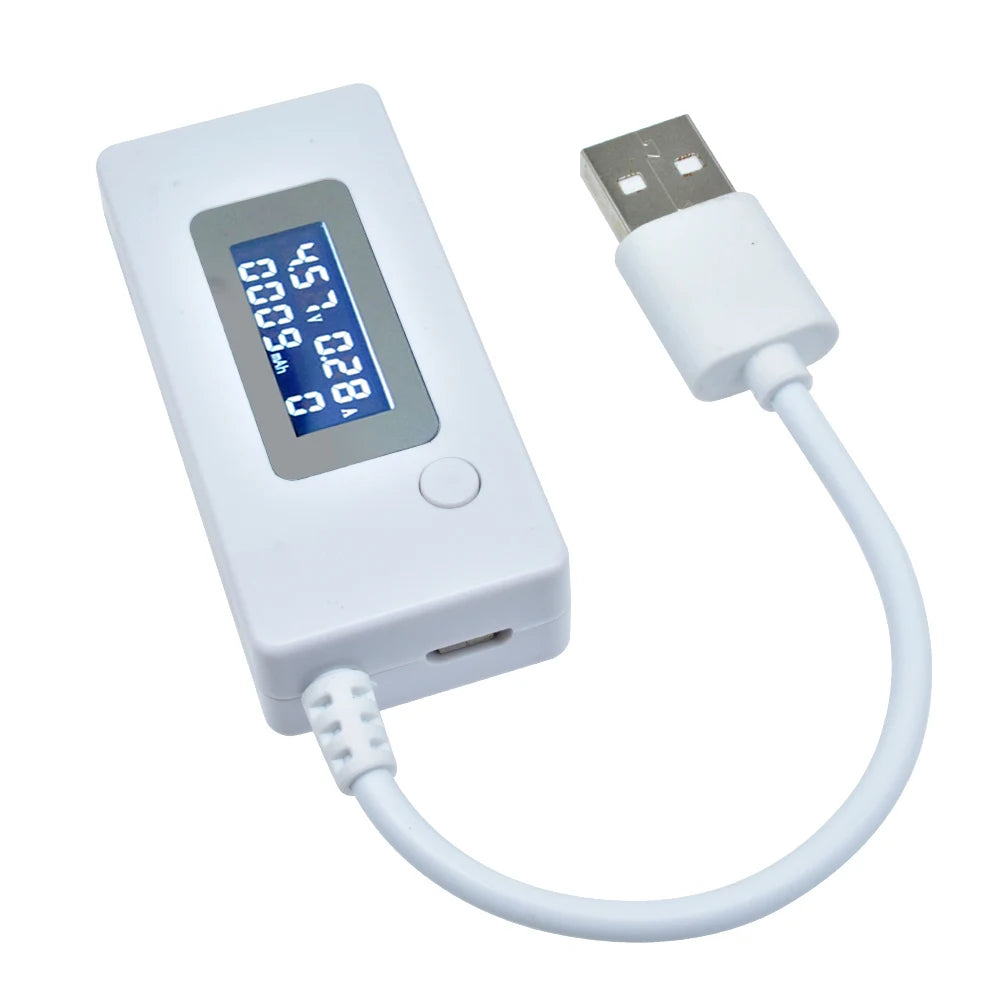

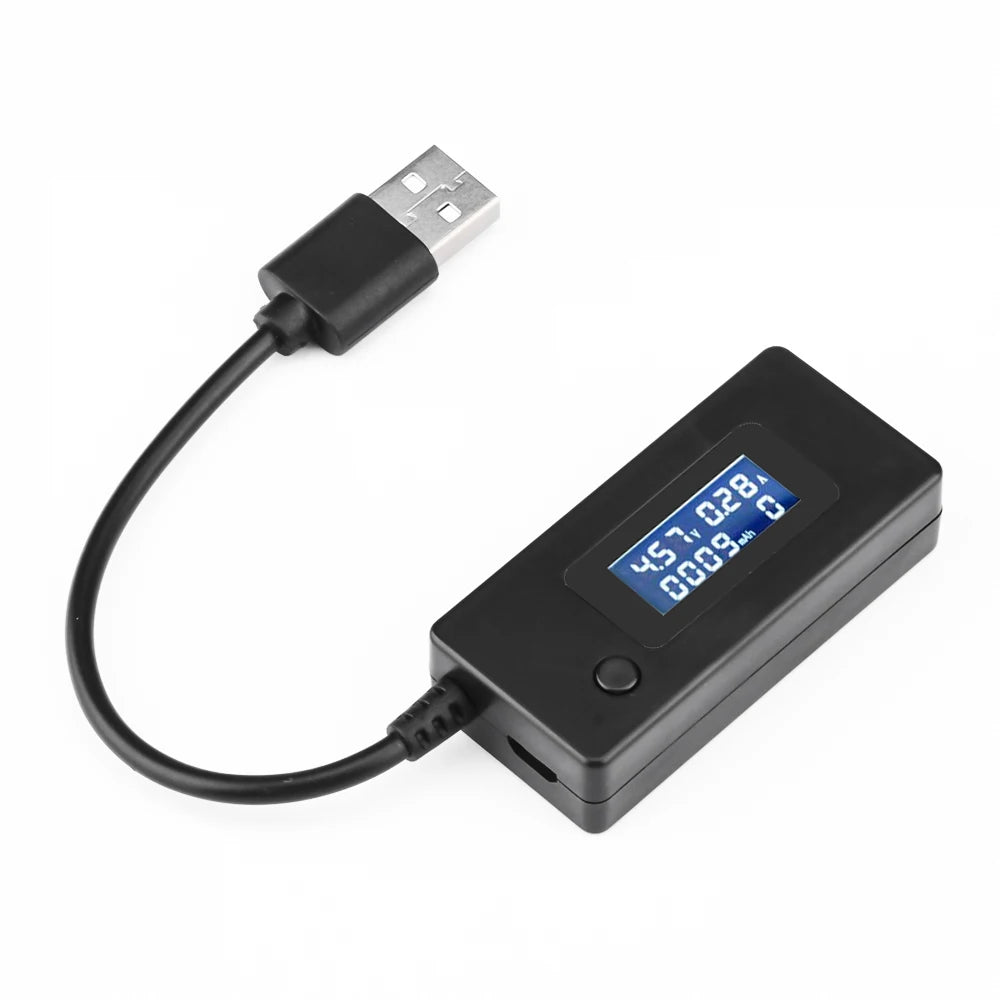

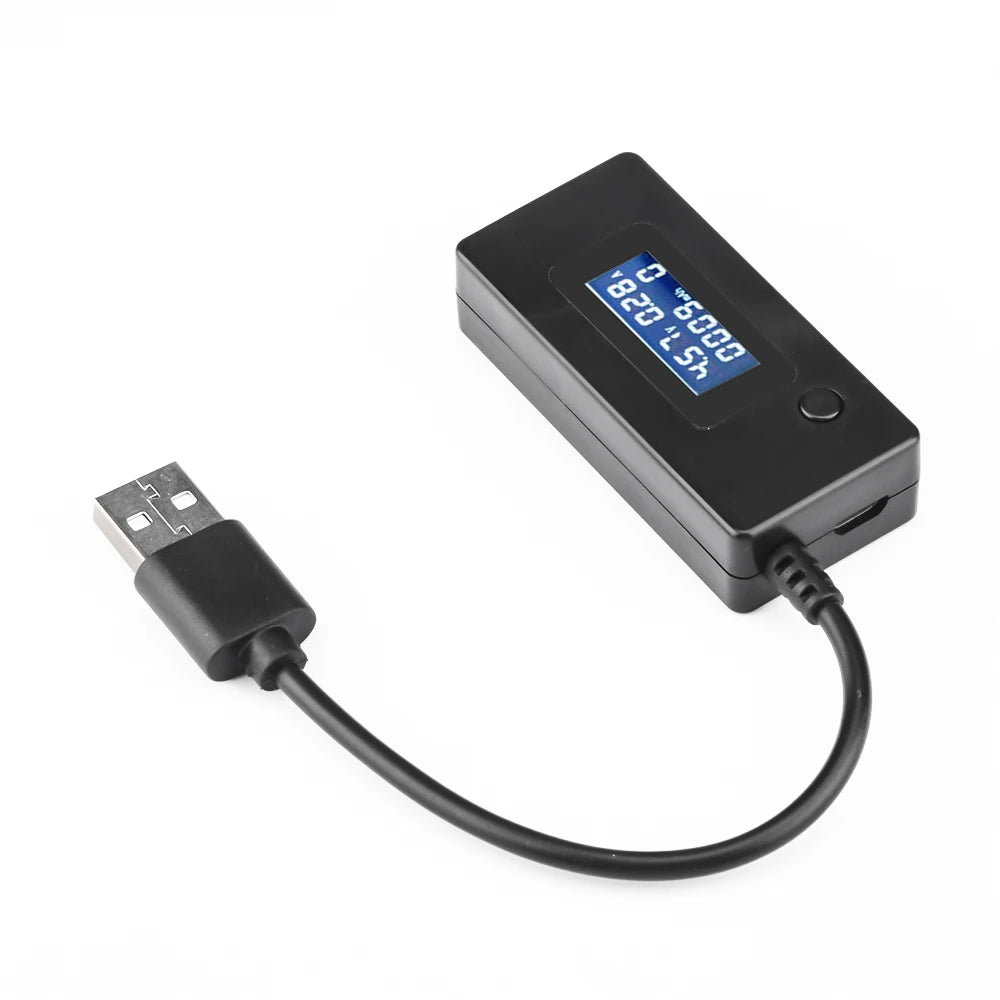

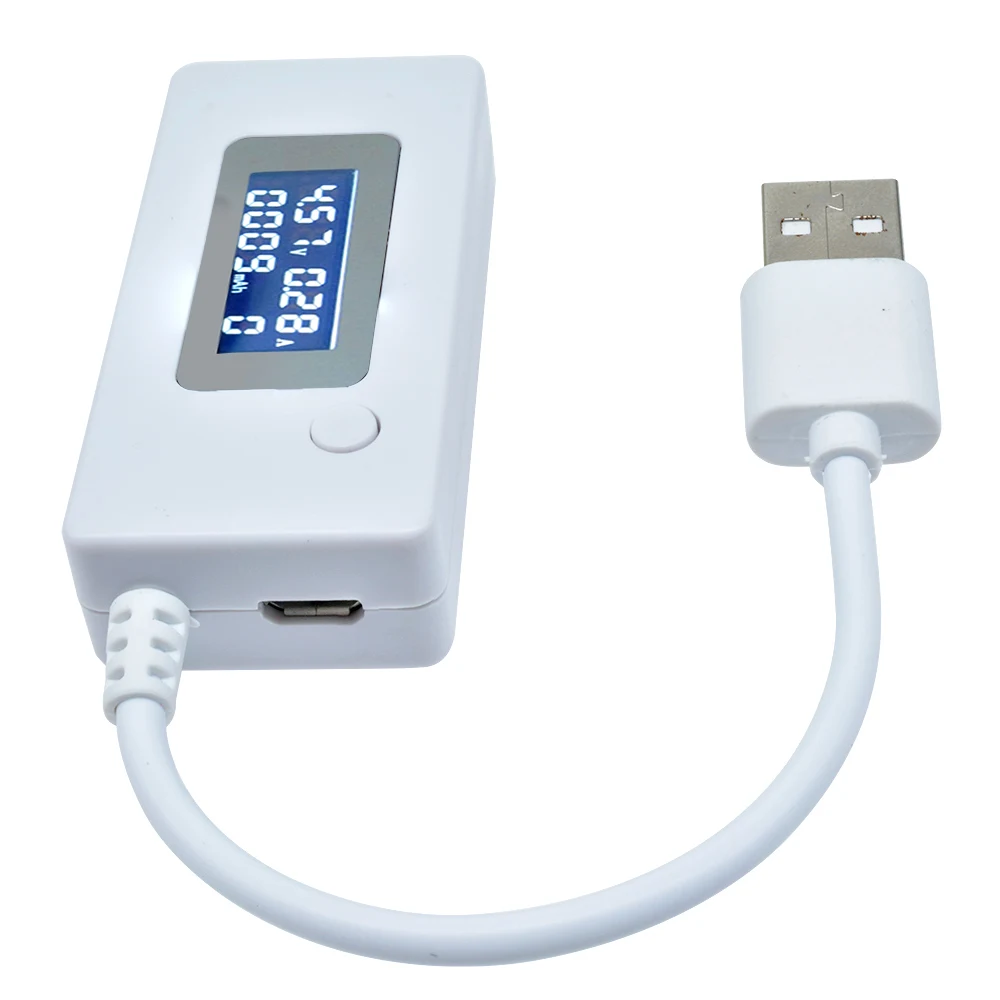

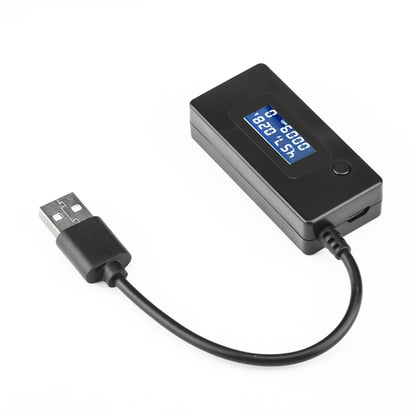

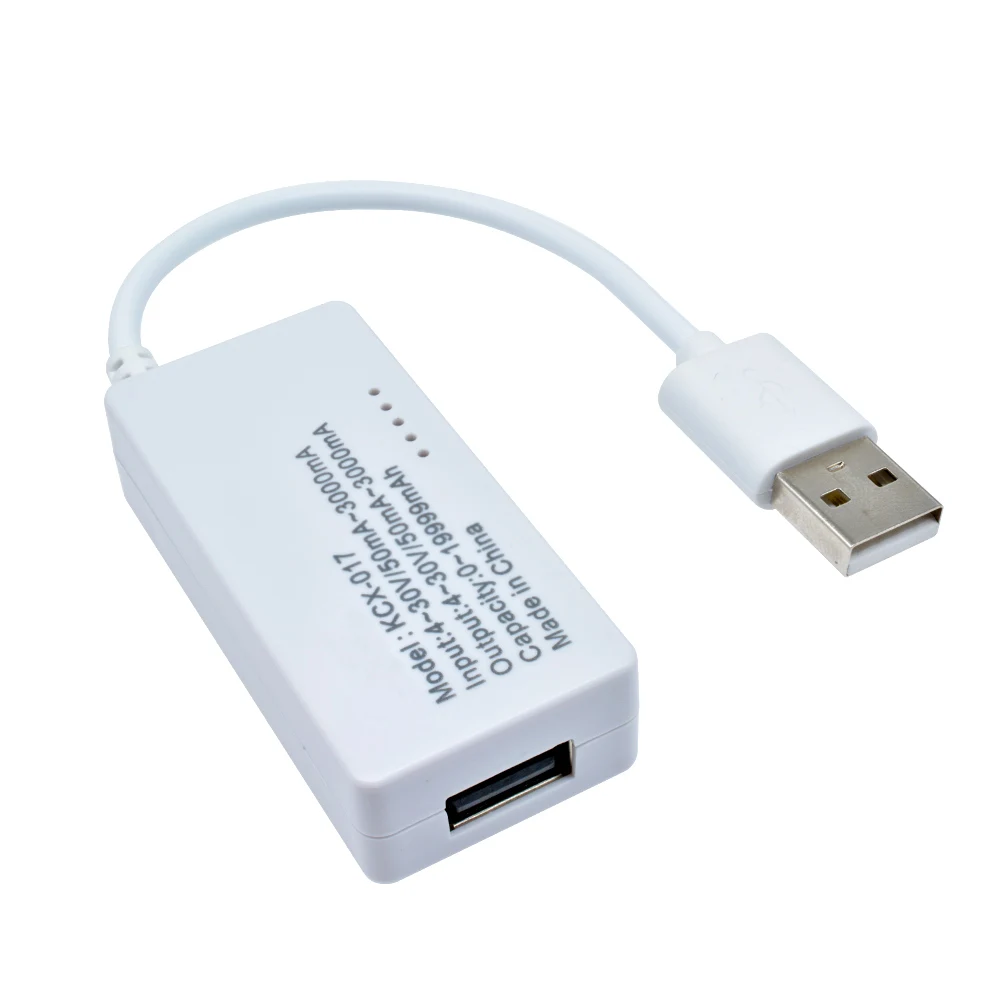

Feature 9: LCD USB Voltage/Amps Meter Tester

High-concerned chemical: None

Input voltage: 4-30V

Line loss: about 0.1 ohms

Model Number: Voltmeter Ammeter

Operating Temperature: 0-50C

Origin: Mainland China

Power Supply: DC

Test content: battery voltage, current, discharge capacity (10 sets of

Test current: 0-3A

Voltage Resolution: 0.01V

Voltage range: Other

Feature:
1. At the same time, the voltage and current mAH data are displayed, which is convenient for viewing and can detect the mAH output of the mobile power supply.
2. Multiple sets of detection data are saved, and the power-off saving function does not affect data transmission
3. Higher precision, current parameters will not jump around randomly, current sampling 25 milliohms, less loss
4. With precision current calibration function, the current accuracy is higher
5. Safe charging, real-time monitoring to master your charging data

Specifications:
Input voltage: 4-30V
Voltage Resolution: 0.01V
Test current: 0-3A
Current resolution: 0.01A
Capacity range: 0-19999mAH
Accuracy: plus or minus 1%
Line loss: about 0.1 ohms
Test content: battery voltage, current, discharge capacity (10 sets of data in total)

Instructions for Use:

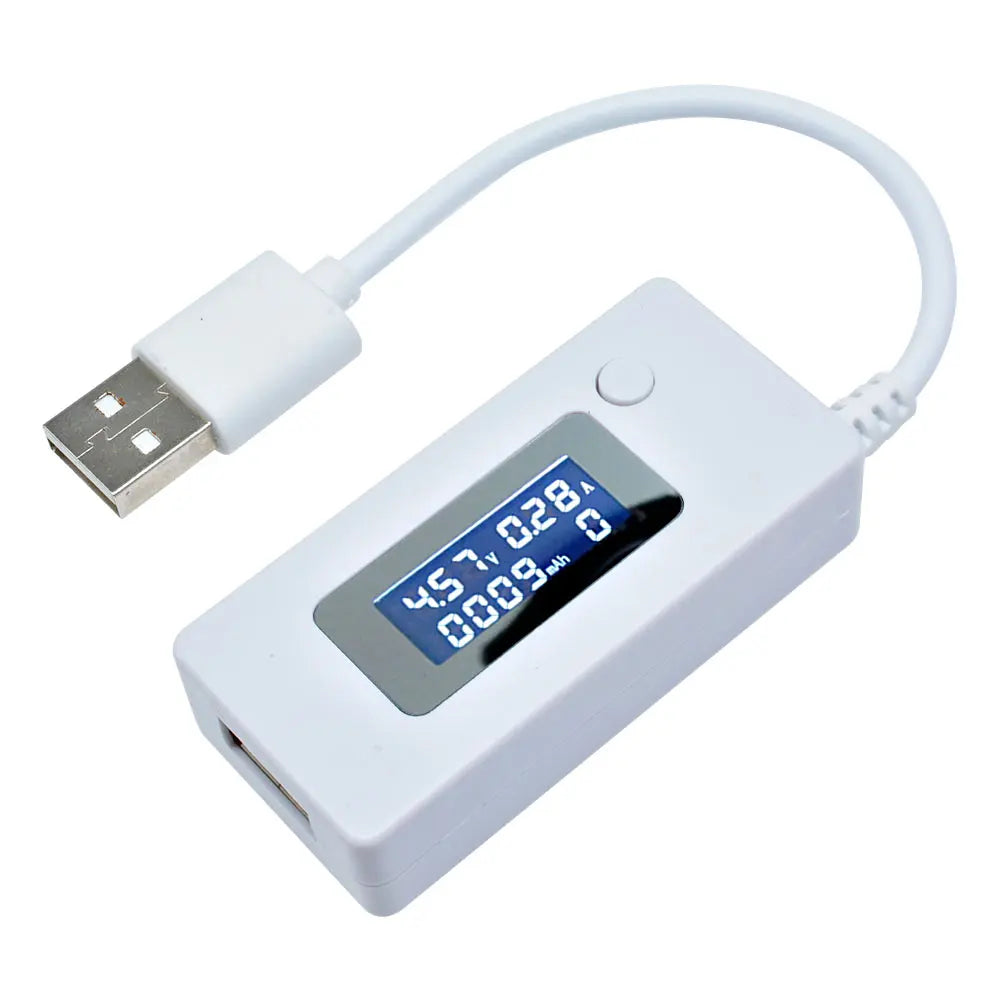

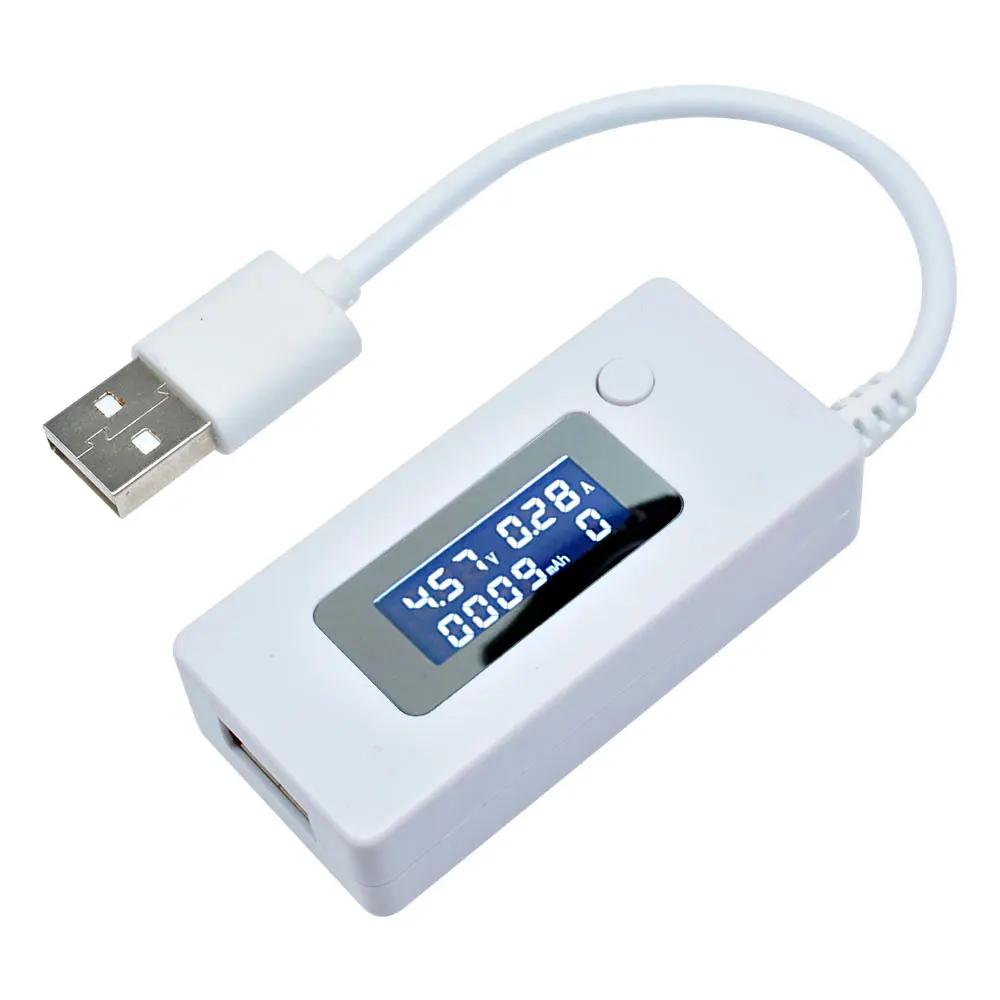

Measuring Voltage and Current:
Plug the USB male plug into the 5V charger, the female socket into the mobile phone and other equipment, and directly read the voltage and current parameters
Test Battery Capacity:
Use a linear charging circuit such as TP4056 to charge a completely dead battery to full capacity through this capacity meter, and the capacity reading is the battery capacity. This method can also be used to measure the charging capacity of the mobile phone, and even calculate the charging efficiency of the mobile phone
Test Micro USB Cable Quality:
When plugging mobile phones and other devices into the female socket, first plug the 5V charger with the male head of the machine, remember the voltage, and then use the MicroUSB cable to insert the 5V charger into the MicroUSB hole of the machine and remember the voltage. The smaller the voltage difference, the better the quality of the MicroUSB cable.
Measure The Output Capacity and Efficiency of The Mobile Power Supply:
First connect the power bank to the machine, turn on the power bank, press and hold the button until the capacity data returns to zero, insert the mobile phone and charge more until the power bank runs out of power and automatically shuts down. The displayed capacity is the mobile power output mAH when the machine is turned on next time. Note that this mAH is much smaller than the nominal mAH, output mAH*output voltage 5V/battery mAH*battery voltage 3.7V=mobile power efficiency
Data Clear:
Press and hold the button until (the number of sets of data) becomes the next set and then release the key, it will automatically jump to the next set of data starting from zero.
Data View:
Double-click the button (within 0.5S) to enter the viewing data viewing mode, the backlight LED will flash, and then display the next set of data again, double-click to exit the data viewing mode, and the backlight LED will be on for a long time.
Voltage Is High or Low:
LCD screen arrows, backlight LED will flash, alarm prompt. Press the button, the LED is always on for 30S.
Power-on Status:
Turn on the power supply through MicroUSB or USB male connector with cable, the entire content of the LCD screen will display 1S (check whether the LCD screen is intact), and then display the last data (capacity, and which group of data), the current voltage, current and voltage are high or low prompt

Package Included:
Current and voltage charging tester*1
