SPECIFICATIONS

Additional Function: Recording Function

Application: For Home,Semi-professional,Extreme Sports,Outdoor Sport Activities,Bicycle,CAR DVR,Diving,Beginner

Battery Capacity(mAh): 1050MAH

Bluetooth Support: No

Body Extension Interface: Others

Brand Name: AUSEK

Built-in Memory Size: Non

Built-in Mic: Yes

Category: Sports & Action Video Cameras

Certification: CE,FCC,RoHS

Display Screen: Yes

Display Size: 2.0"

Diving mode: Support(Settings-Filter-Red)

EIS: Support 4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/60fps/30fps

Effective MegaPixel: >25MP

Expand Microphone: Yes

HDMI-Compatible Output: Yes

High-concerned chemical: None

Image Sensor: Other SONY Series

Image Stabilization: Electronic Image Stabilization

Input/Output: HDMI

Main Processor ( Maximum HD Support): Mstar MSC8328P

Max depth[m]: 30M

Maximum Aperture: F2.0

Memory Card Support: 128G

Memory Card Type: MicroSD / TF

Motion detection: Support

NFC Support: No

NightShot Function: No

Operating Temperature[°C]: -10°C / +60°C

Origin: Mainland China

Package: Yes

Photo resolution: 50M/30M/24M/20M/12M/8M

Pre recording: Support about: Normal Video:30FPS-20S;30FPS(EIS)-10S;60FPS-10S;60FPS(EIS)-5S"

Rechargeablebatteryincluded: Yes

Remote Control Support: Yes

Removable/Replaceable Battery: Yes

Sensor Size (inches): 1/2.8 inches

Supporting Language: Japanese,French,German,Italian,Spanish,Portuguese,Russian,English,Korean,Dutch,Simplified Chinese,Traditional Chinese Style

Touch Screen: Yes

Video Format: MP4

Video Resolution: 5K30FPS/4K60FPS/4K30FPS

Volume: 60.5*32*43.4mm

WIFI Support: Yes

Waterproof: Yes

Weight: 101g-150g

Wideangle: 170°

Wireless Function: Yes

Zoom Magnification: 4X-8X

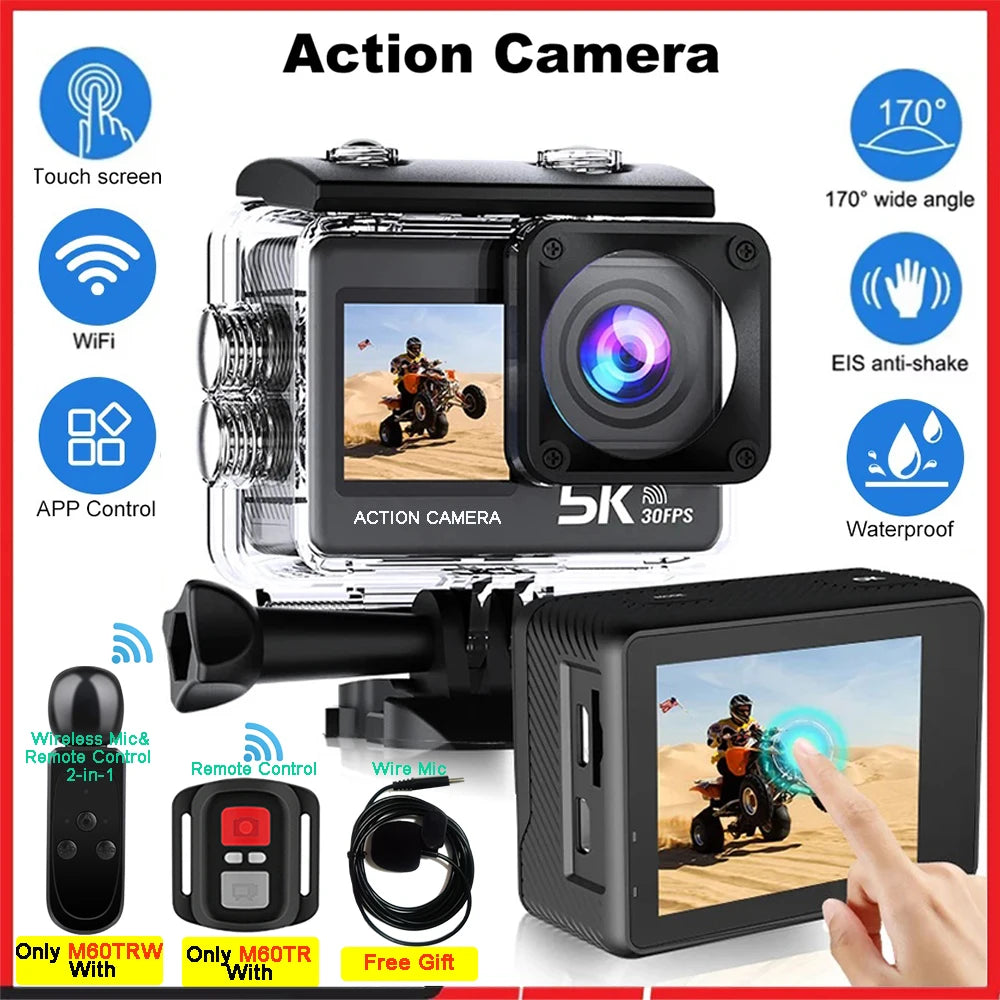

5K 30FPS Action Camera

◾Chipset：MSTART8826
◾Lens：170 degree wide angle
◾Screen size：2.0-inch LCD +1.33 inch
◾Touch Screen：Optional 2.0-inch LCD（Rear Screen）
◾Video resolution:5K@30fps;4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/120fps/60fps/30fps
◾Pictures resolution：50M/30M/24M/20M/12M/8M
◾Compression format：H.264
◾Video format：MP4
◾Pictures format：JPG
◾WIFI：Support
◾EIS：Support 4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/60fps/30fps
◾Time-lapse video：Support
◾Slow motion：Support
◾Fast motion video：Not Support
◾Loop recording：Support 1 minutes, 3 minutes,5 minutes
◾Photo mode：Single shooting, timed shooting, continuous shooting
◾Time-lapse：Support
◾Pre recording mode：Support，Pre-recording time⏱️about:Normal Video:30FPS-20S;30FPS(EIS)-10S;60FPS-10S;60FPS(EIS)-5S"
◾Motion detection：Support
◾Driving mode：Support
◾Diving mode：Support(Settings-Filter-Red)
◾Distortion correction：Not Support
◾Digital zoon：Support 1X-5X
◾Remote controller：Support ("M60TRW" 2-in-1 with wireless microphone）
◾External microphone：Support（Optional）
◾Wireless microphone：Only ""M60TRW"" supported;""M60TR not supported"
◾Automatic shut-down：Support 1 minutes, 3 minutes,5 minutes
◾Screen saver：Support 1 minutes, 3 minutes,5 minutes
◾Language：English/Chinese Simplified/Chinese Traditional/Korean
French/Spanish/Italian/Portuguese/German/Russian/Japanese/Thai"
◾APP：SupCam Pro
◾Memory card：Micro SDHC Card，U3，Max 128GB
◾USB Port：Type-c，Support MSDC mode and PC Cam

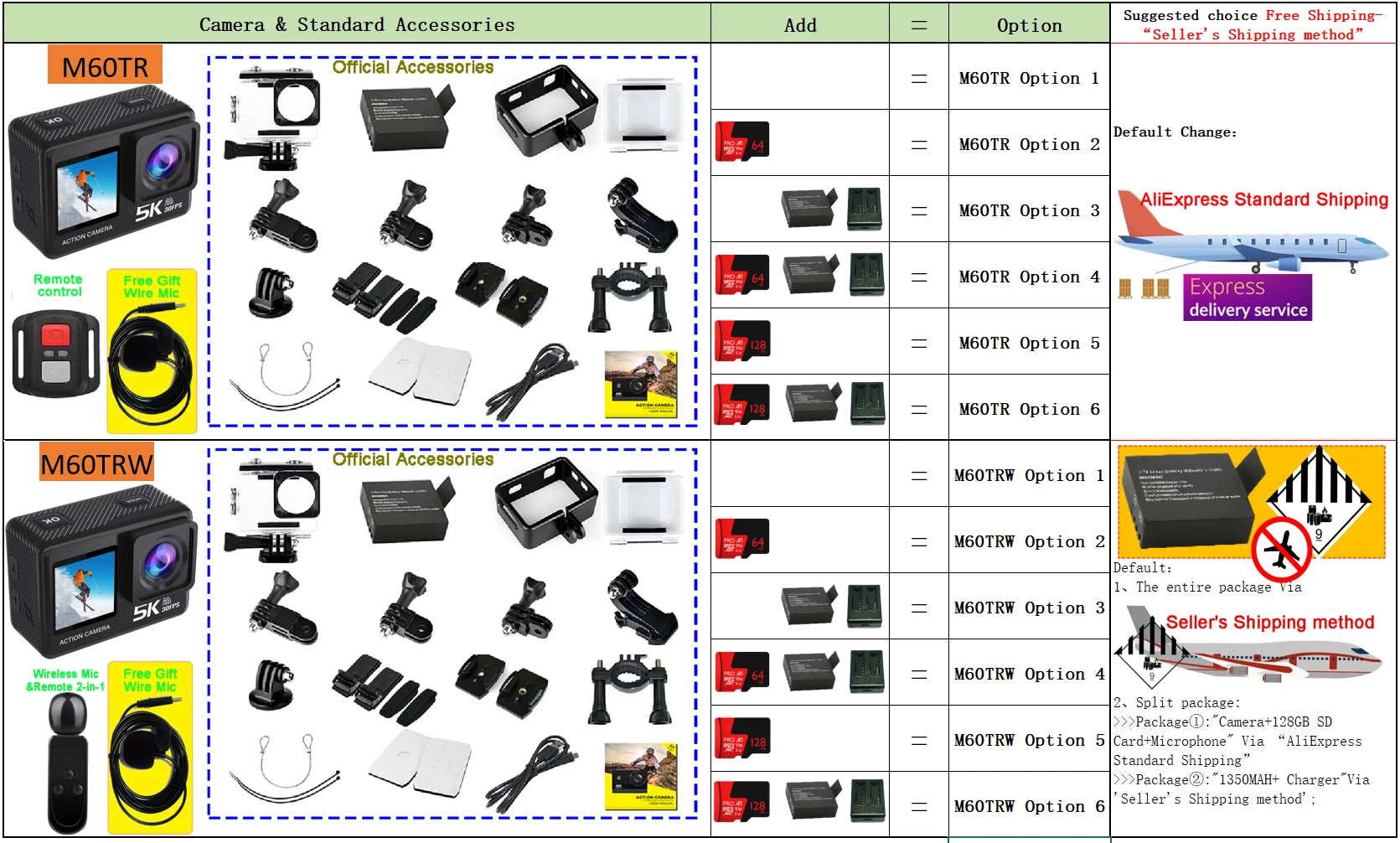

Shipping Method Notice:

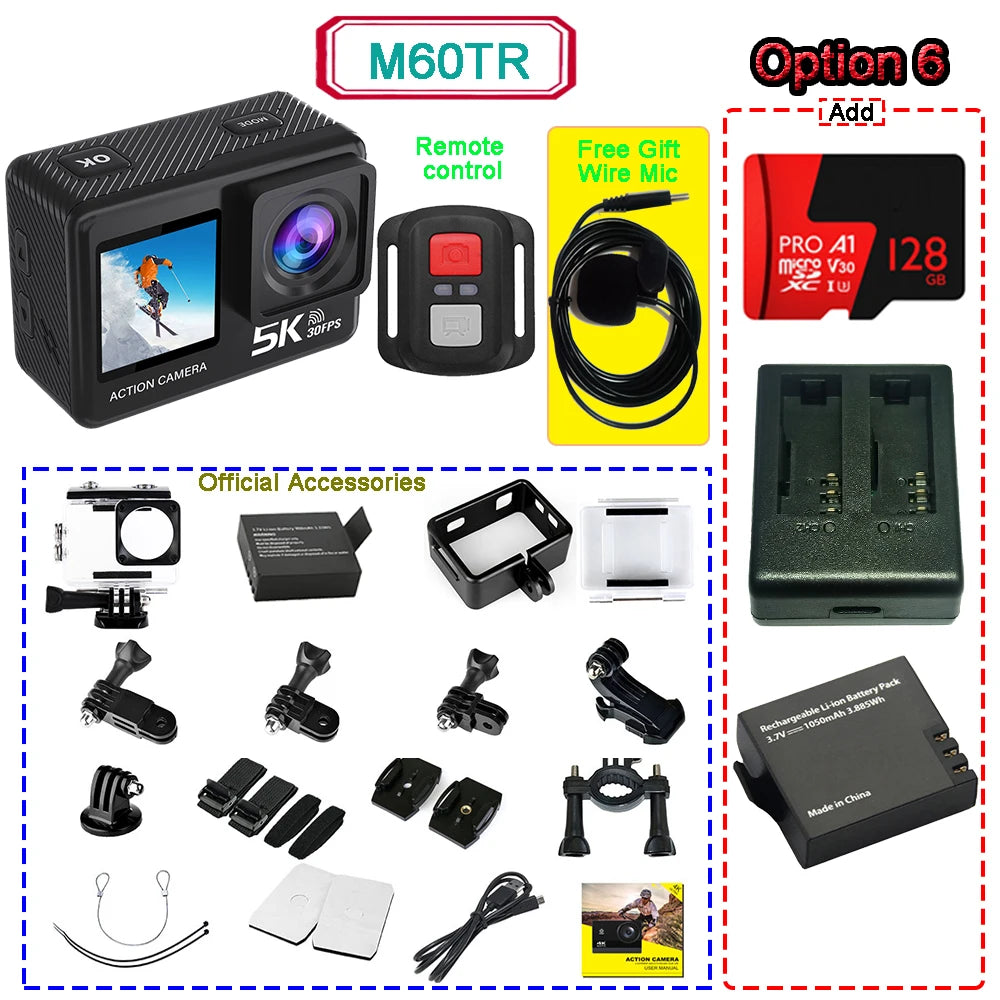

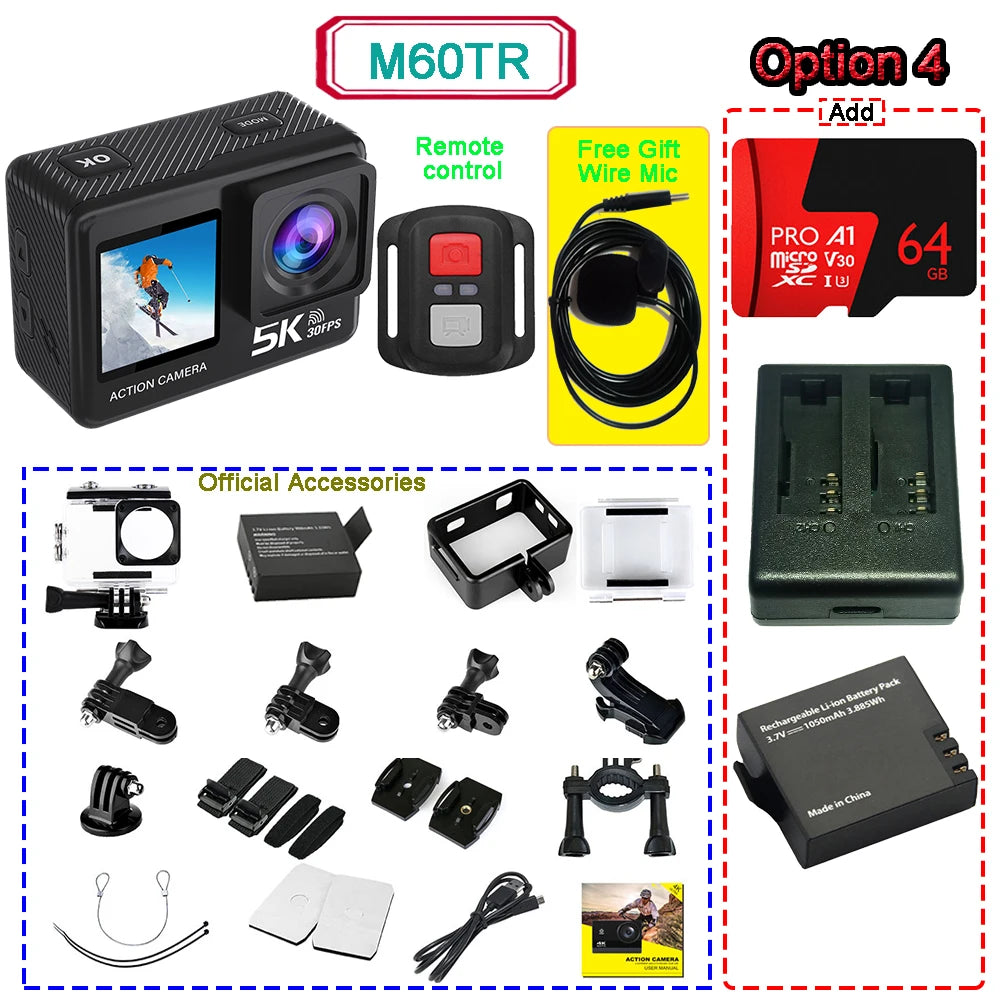

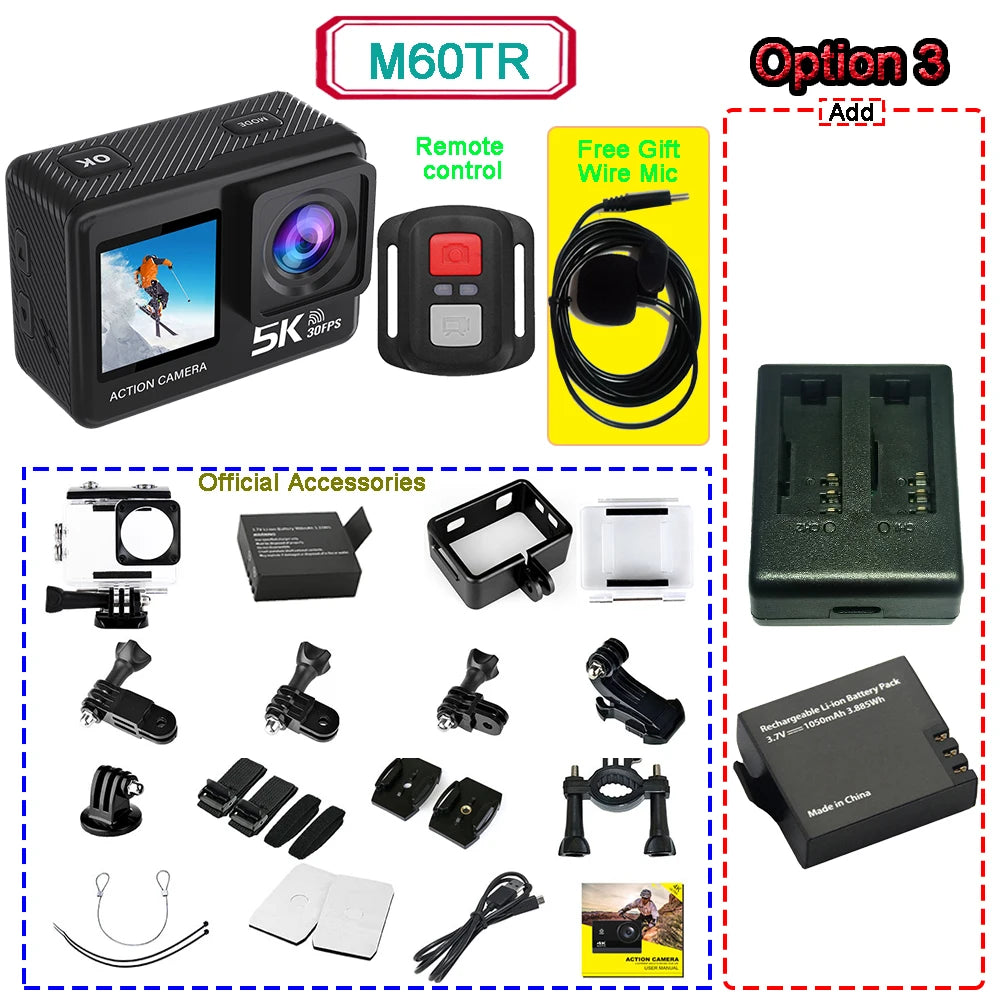

■Options 3,4,6: "Additional lithium batteries" are Class 9 aviation contraband and must be shipped separately to certain countries via the "“Seller's Shipping Method”". Delivery may be delayed by 5-10 days.
■Please understand your order, it may be split into 2 packages for shipment.

Mstar 8826 Chipset +Sony IMX386 Sensor

●CPU: Mstar 8826 Chipset Real 5K 4K 60fps.
●Sensor: Sony IMX386
●Structure: F2.0,2.68mm,6 layer glass lens.
●Angle: Level 155"/diagonal 170°.

Wonderful 5K/30FPS Enjoy Constantly

●High-definition optical glass lens, F2.8 large aperture,everything is in sight.
●Video resolution:5K@30fps;4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/120fps/60fps/30fps

2.0 Inch Touch Screen(Optional Bundle)

◾The 2.0 (PS)touchscreen display makes controllingthis small, powerful action camera easier than ever
◾Optional bundle: with touch screen

One Click Switching Between Front And Rear Screens

◾Long press the "down" button to switch between the front and rear screens,
Very convenient.

Wide Angle170°

◾170D wide angle , magnified field of view , clear imaging , upgraded texture

5X Digital Zoom

●Lossless zoom can be achieved. Easily achieve zoom from 1x to 5x

6-AXIS Anti shake (EIS)

◾Built-in advanced 6-axis electronic image stabilization(Els), Adopts 6-axis anti-shaketechnology to deliver steady and smooth videos, that ensures excellent experience inup to 4K resolution
◾EIS：
☑️Support 4K@60fps/30fps;2.7K@60fps/30fps;1080P@60fps/30fps;720P@/60fps/30fps
🚫EIS Not supporting 5K30FPS videos and 720P120FPS videos.

Pre Record Mode

■Turn on "Pre Record" and when you press "Shutter", you can record the
video in advance
■Pre-recording time:About
■Normal Video:30FPS-20S;
■Normal Video 30FPS(EIS)-10S;
■Normal Video60FPS-10S;
■Normal Video 60FPS(EIS)-5S

Motion Detection

●Turn on "Motion Detection", press "OK" in the video to start shooting.
●Auto Stop>>>Static video-If there are no moving objects that last for 15 seconds, the shooting will automatically stop.
●Auto Start>>>Dynamic Video-If there are moving objects again, Or camera movement,the camera will automatically start shooting.

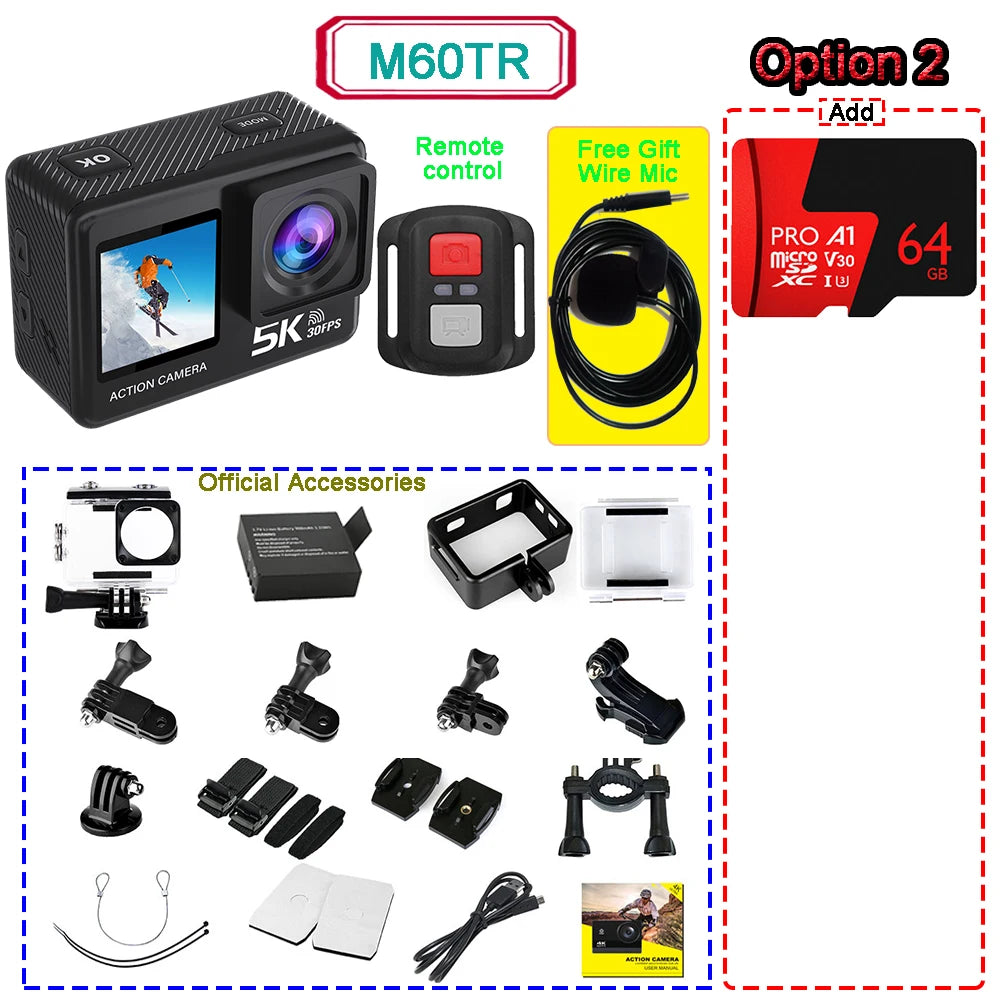

2.4G remote control（M60TR Only ）

●The remote control that supports 2. 4GHz can make your hands completely free.it allows you to control the camera from a distance
■Photo Taking
■Video Recording

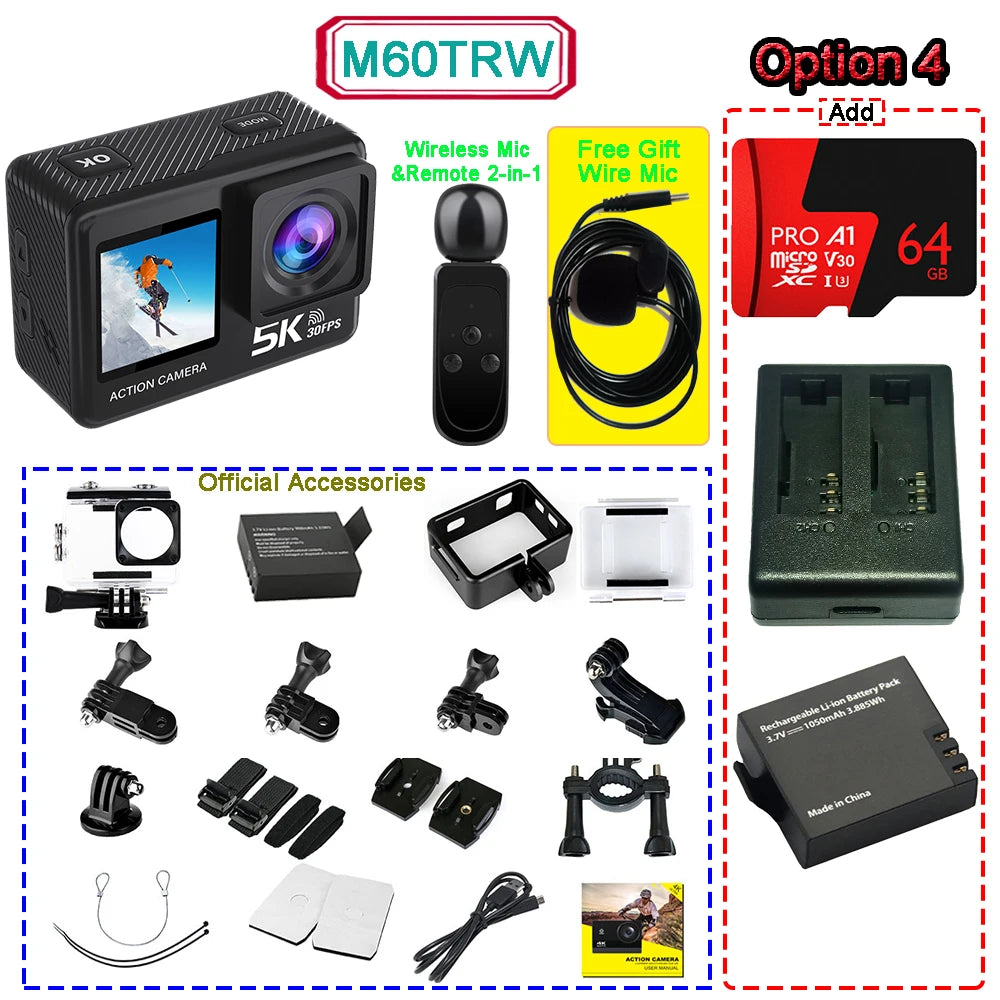

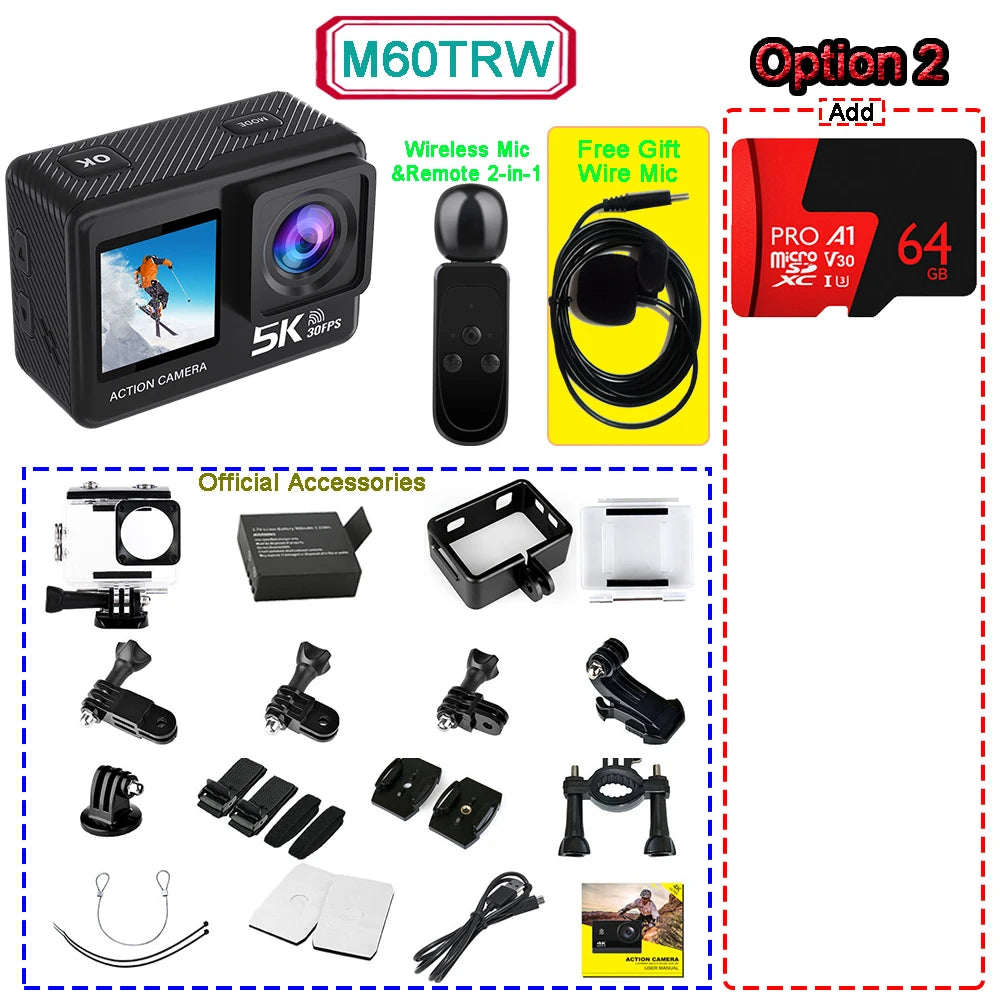

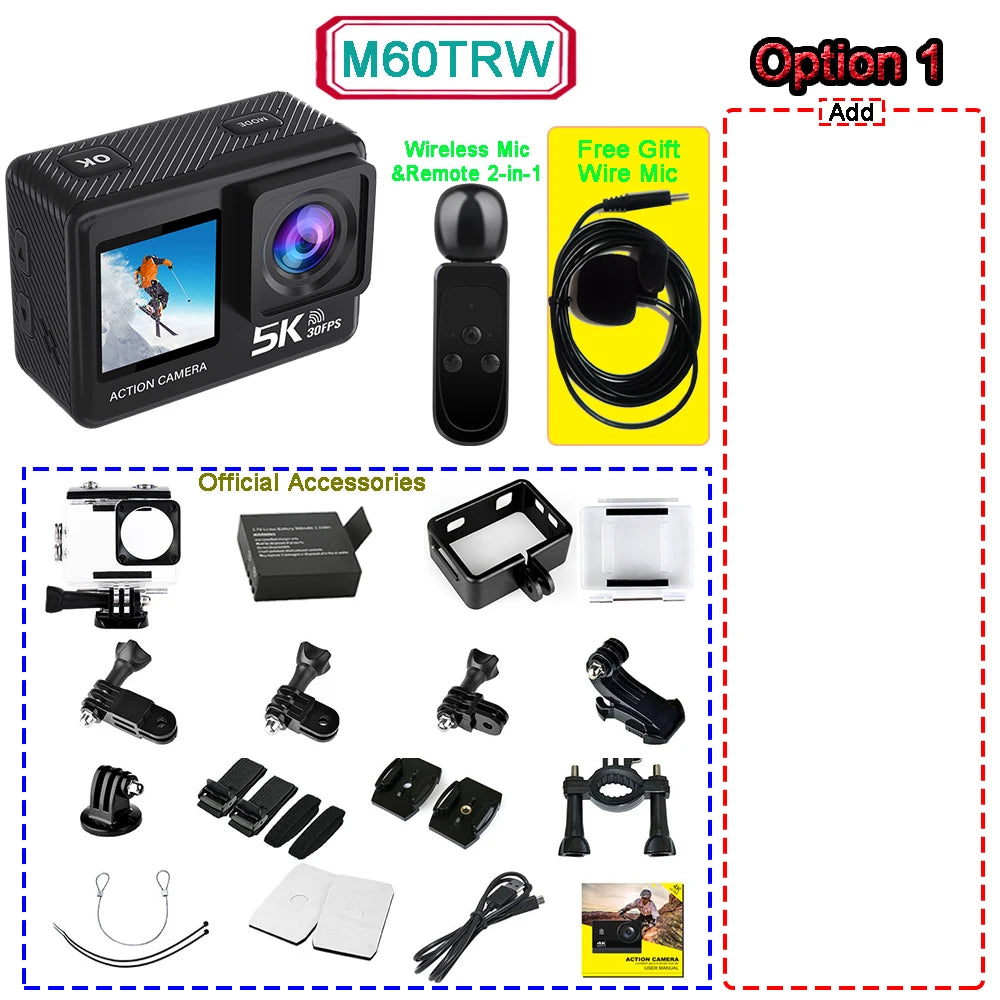

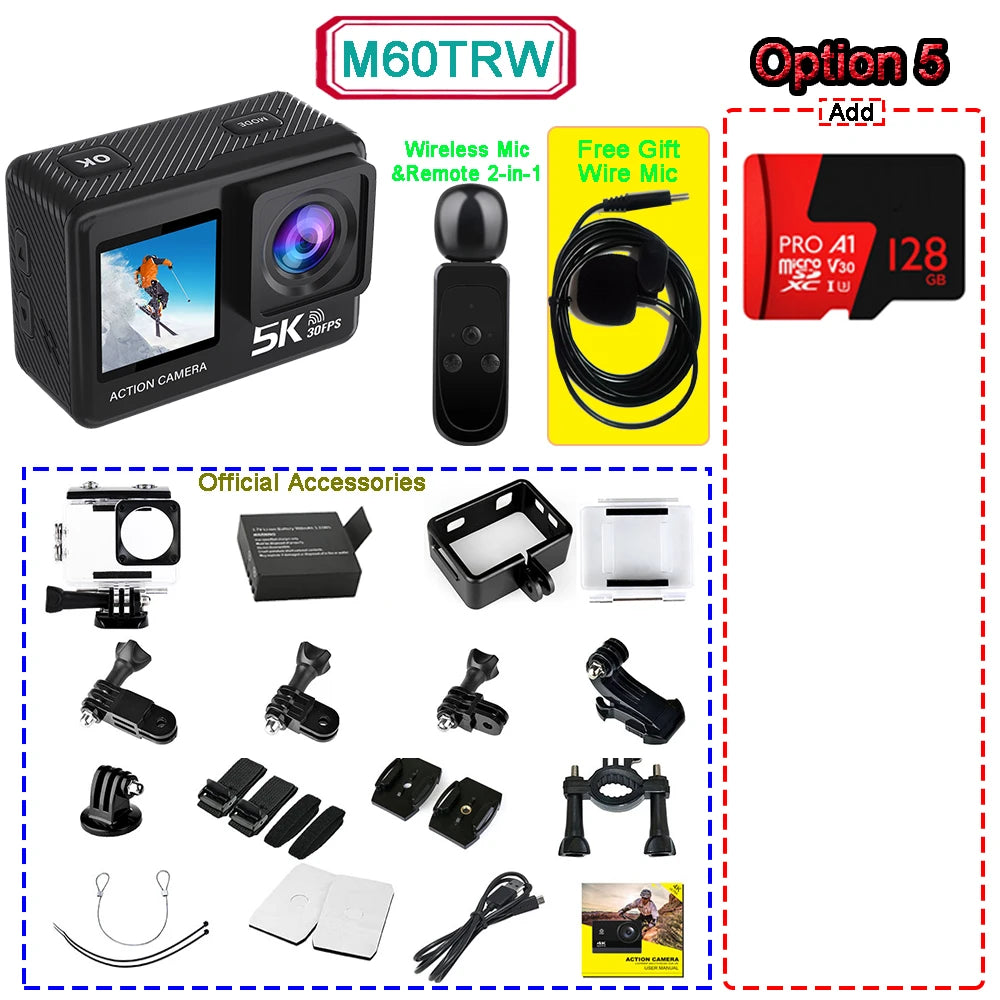

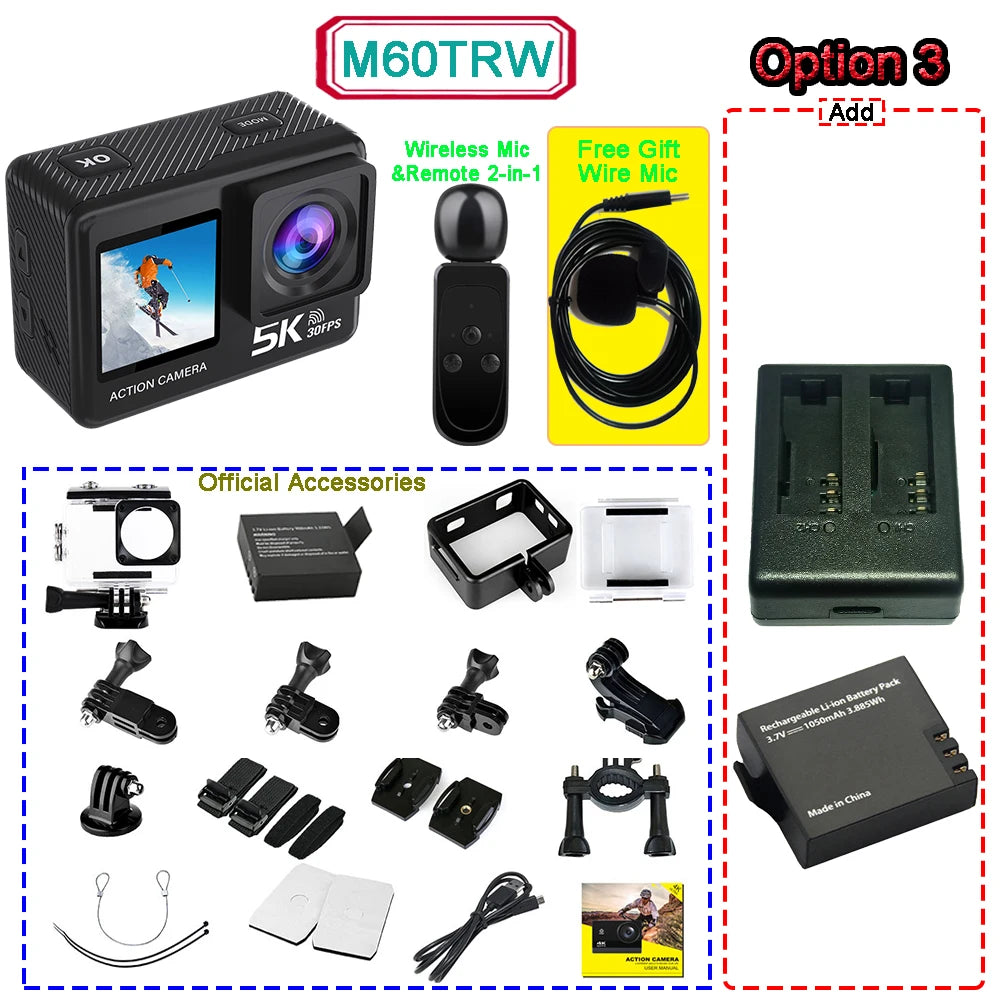

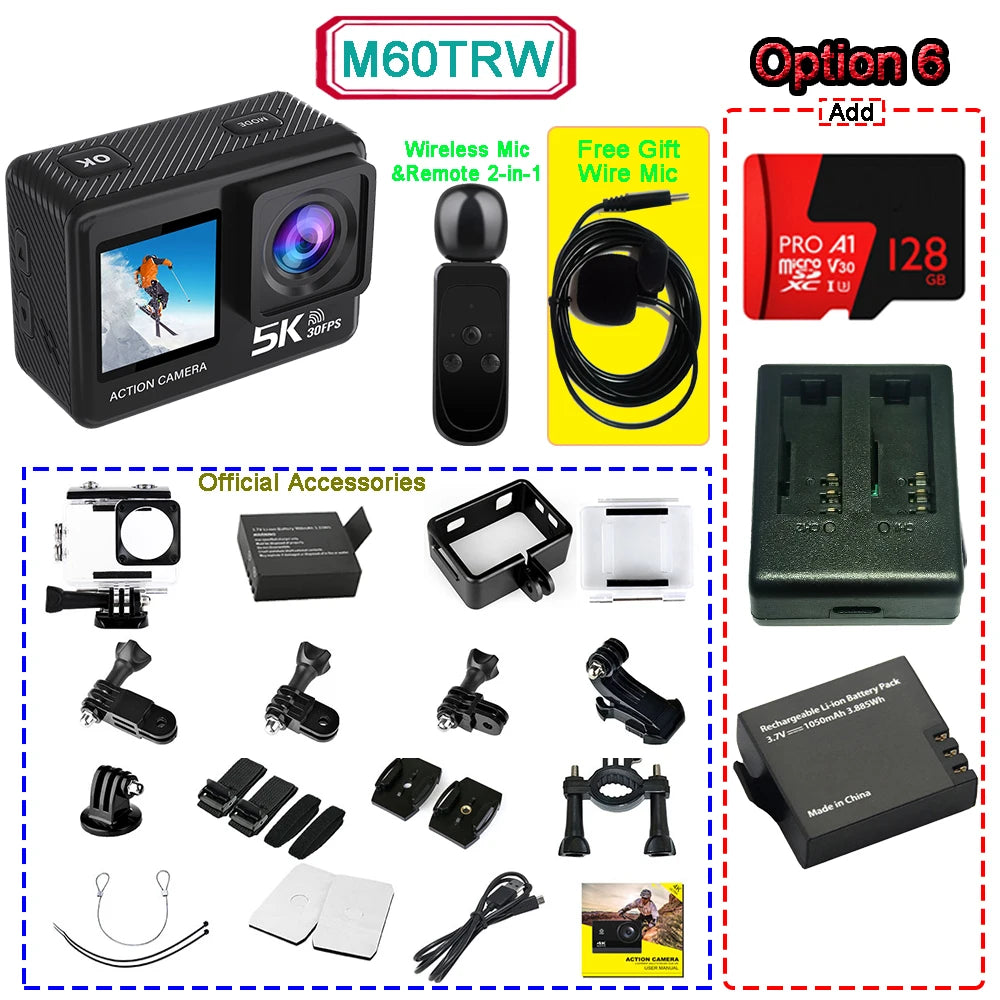

Wireless Microphone&Remote Control 2-in-1（M60TRW Only）

■Only the "M60TRＷ" version support
■Vlog no longer lack of beauty ,Support external microphoneto further satisfy the vloggersneed for audio reception

Wireless Microphone&Remote Control 2-in-1

■"Wireless microphone" connection: Turn on the wireless meter in the M60TR+camera settings and put the microphone in the power on state to automatically connect. If not connected to the host for 5 minutes, it will automatically shut down. When not connected, the "red light" and "blue light" will flash alternately, and a successful connection will be a blue light.
■Power on/off: Long press the power switch. Short press to pause microphone usage input (red light on)
■Video: Short press the "Volume+/Video" button. The Video indicator light (Red)keeps flashing during recording
■Photo: Short press the "Volume-/Photo" button
■Volume up: Long press the "volume+/video" button
■Volume Reduce: Long press the "Volume -/Photo" button

External Microphone （Optional）

■Built-in microphone effect: small, noisy, distant, fuzzy, please do not buy a camera or add a dedicated external microphone if you do not accept it.
■This camera supports external microphone. If necessary, please click Add to shopping cart:
